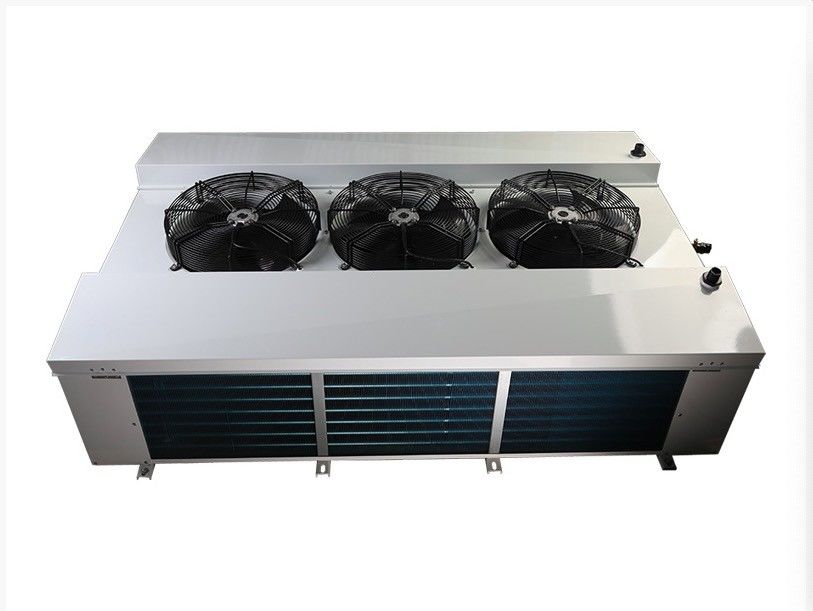

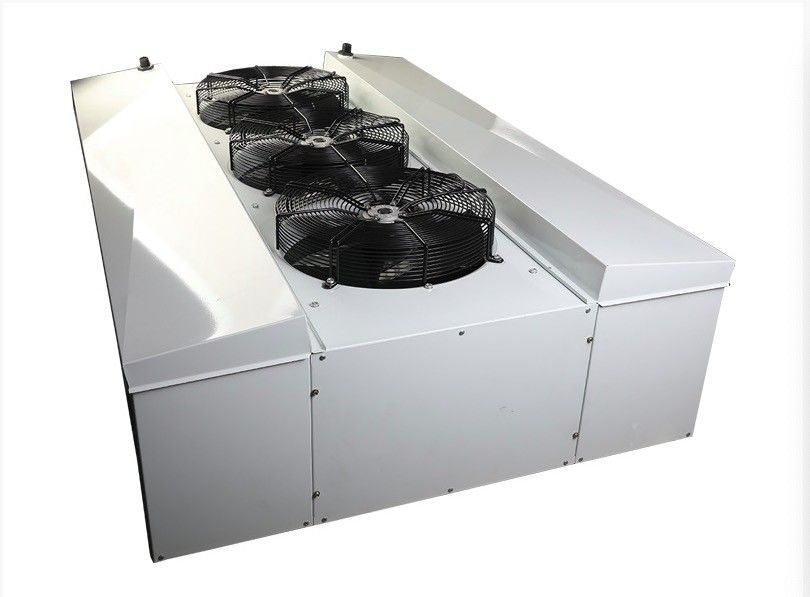

EE series high temperature double-side air cooler product overview
EE series of high-temperature dual discharge air cooler is mainly developed for the application of high-temperature cold storage of 10-20 °C, with the structure of air inlet at bottom and air outlet on both sides; it is mainly used for those large production cold storage with operators inside who are not suitable for direct air flow.
This series of products has the following characteristics:
1.Casing: High-quality galvanized steel plate sprayed with powder coating (silver gray RAL9006),with desirable corrosion resistance;the outer water plate is designed with hinged structure, which is convenient to operate;
2.The side sheet of the heat exchanger is made of aluminum plate,which can effectively protect the copper tube and reduce the weight;
3.Thermal insulation water plate design: The outer water plate is designed with a double-layer structure with thermal insulation to Prevents condensation and dripping from the water pan during operation at dew point conditions;
4.It is equipped with air outlet deflector to avoid direct blowing of wind;
5.Coil: φ12mm inner-grooved copper tubes are used, arranged in a triangular pattern,with higher heat transfer efficiency;
6.Corrugated aluminum sheet made of hydrophilic aluminum foil is adopted, with the sheet spacing of 4.0mm;
7.Fan: External rotor fan with blowing air; fan specifications: φ450 and φ500, product series of different specifications, giving users more choices;
8.The IP65 waterproof junction box and waterproof connectors are used,with better waterproofing,which can lead to high reliability;
9.The outlet of the air cooler is equipped with a needle valve, which is convenient for users to test the pressure;
10.It is subjected to strict factory pressure test at the pressure of 23bar;
11.The expansion valves and other parts can be pre-installed according to customer’s needs;
12.It is compatible with R404A, R507A, R448A, R449A, R134a, R22 and other refrigerants.
Standard Configuration and Options
| component | Configutation | |
| Casing | Powder coated aluminum-magnesium plate | × |
| Powder coated steel plate | ○ | |
| Powder coated galvanized sheet | ● | |
| Stainless steel plate | ○ | |
| Motor | Weiguang external rotor motor | ● |
| EBM external rotor motor | ○ | |
| Air tube fan | × | |
| Aluminum foil | Normal aluminium foil | ○ |
| Hydrophilic aluminum foil (blue foil) | ● | |
●:Standard component;○:Optional component;×:Not available
Electrical Parameters
| Model | Fan motor | |||
| Voltage(V) | Power(W) | Current(A) | Rotation speed(r/min) | |
| EE451/FL-T | 380-3 | 250 | 0.55 | 1350 |
| EE452/FL-T | 380-3 | 500 | 1.1 | 1350 |
| EE453/FL-T | 380-3 | 750 | 1.65 | 1350 |
| EE454/FL-T | 380-3 | 1000 | 2.2 | 1350 |
| EE501/FL-T | 380-3 | 414 | 0.85 | 1300 |
| EE502/FL-T | 380-3 | 828 | 1.7 | 1300 |
| EE503/FL-T | 380-3 | 1242 | 2.55 | 1300 |
| EE504/FL-T | 380-3 | 1656 | 3.4 | 1300 |
